Introduction to the grinding file

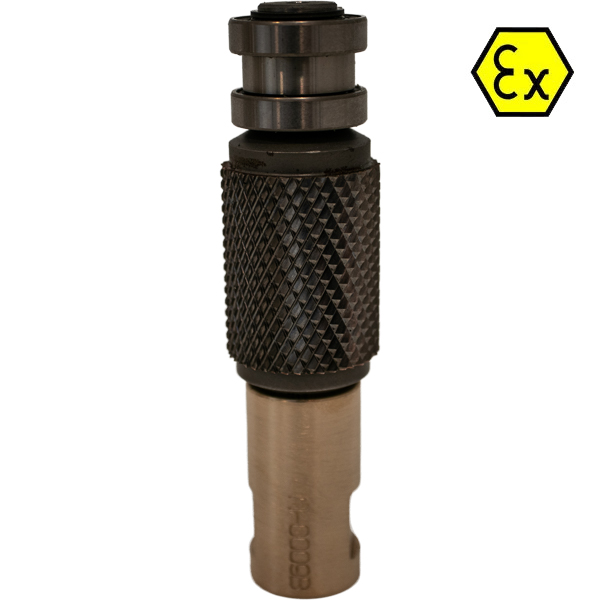

A-0009B – Big Boy B quickly removes paint and steel from surfaces and pipes. The grinding file is primarily attached to our angle grinder but also fits our straight grinder.
Certified safe to use in ATEX gas zones 1 and 2. Stop the need for time-consuming risk analysis and cut costs bound to shutdowns, fireguards, Hot Work permits, habitats, and demanding clean-up work.
Tech data:
- Total length – 95mm
- Teeth length– 32mm
- Weight – 340g
Health, Safety, and the Environment
Our grinding products are designed to comply with Health Safety & the Environment (HSE & OSHA) requirements. They offer low vibration, low heat, and low noise levels. The fragments produced are large, blunt, and will stay within a few centimeters/inches of your work area. As a result, this makes cleaning up simple and safe.
Long-lasting
Safety Tools Allmet rotating grinding burrs and discs have a long lifespan and consist of solid tungsten carbide, which gives our burrs and discs a material property harder than an industrial diamond. The lifespan of the rotating grinding burrs and discs depends on the application, but generally, they last hundreds of times longer than conventional alternatives.
The grinding file fits the following air tools:
Primarily used with:
A-0104 Fuji Angle Grinder (FCD-6X-51)
But also fits:
A-0107 Fuji Straight Grinder (FG-2VX-50)
The grinding file is included in these packaged solutions:
Recommended Usage Areas
Our cold technology is used in many sectors, including oil and gas, petrochemical, steel construction, and shipbuilding. In addition to maintenance work on bridges and offshore installations.
Below you can find our project pages.
Cold Solutions - ATEX Certified
Health, Safety & the Environment
Products comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, heat, and noise levels. The fragments are large and blunt and will stay within a few centimetres/inches of your work area, thus making cleaning up simple and safe.
Certified and classified by Gexcon Certification
All solutions from Safety Tools Allmet are ATEX Certified as safe to use in ATEX Gas zones 1 & 2. Our cutting tools are also certified for use in ATEX dust zones 21 & 22. No need for a hot work permit, habitats, fire guards, shutdowns and nitrogen flushing/flushing.
Tungsten Carbide
Our rotating files and discs consist of solid tungsten carbide. The hardness and design of the teeth significantly increase the lifetime of the grinding files and discs. You can expect a lifetime of 100 times more than conventional burrs.
Spot Repair
Ex-certified cold work tools from Safety Tools Allmet provide a good, clean surface with a profile that meets the requirements of the SSPC-SP11 Surface Preparation Standard.
Surface profile

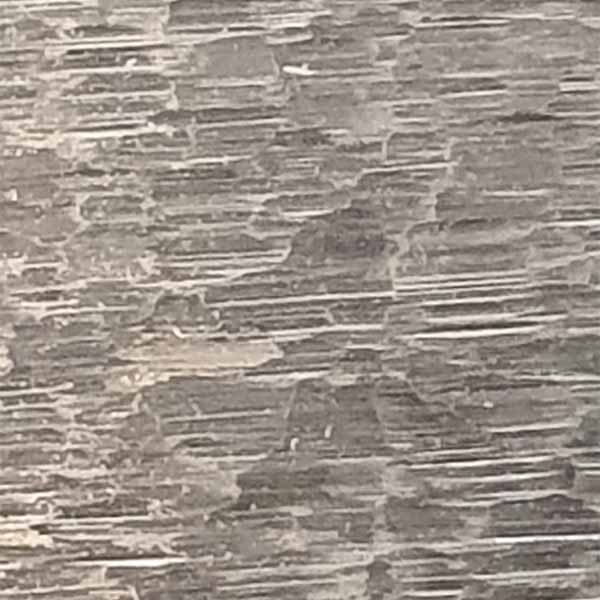

The solid tungsten head for Safety Tools cold rotating grinding files has different designs on its teeth so that they can produce different surface profiles for every situation. Our burrs create a roughness profile of between 40 – 75 microns.
Adhesion and Cleanliness
The correct surface profile creates a suitable anchor for paint and coatings. ATEX grinding tools from Safety Tools Allmet create good adhesion and a clean surface. Extensively independently tested for surface adhesion by International Paint, Jotun, Chevron and Weatherford.
NO Isocyanates - LOW Sound levels - LOW Vibration
NO release of isocyanates when grinding or cutting through polyurethane.
Low sound level. (<85 dB)
Low vibration. (Average <2.5 m/s)
Safety Tools Allmet - Since 1998
We are experts in training, usage and maintenance of our cold solutions. We can document years worth of good feedback from customers worldwide.
