A-0105 Fuji Angle Grinder (FCD-10X-52)

Custom designed air tool that can only be purchased from Safety Tools Allmet or one of our exclusive importers. They are specially designed to use with our cold files & discs in potentially explosive work areas – hot work permit not necessary.

Technical data
  • Speed – 1000rpm
  • Weight – 2400g
  • Length – 377mm
  • Diameter – 50mm
  • Max Air Cons – 0,50 m3/min
  • Temperature Marking – T3/T4
  • Air inlet – 1/4″ NPT

Category Tag
Share
Description

Health, Safety and the Environment

Our products are designed to comply with the requirements for Health Safety & the Environment (HSE & OSHA) offering low vibration, low heat and low noise levels. The fragments produced are large, blunt and will stay all within a few centimetres/inches of your work area. This makes cleaning up simple and safe.

Long lasting

Safety Tools Allmet files and discs should not be treated as normal consumer goods because they are very durable. We have rented our grinding solutions for over a decade in the North Sea. Our customers often state that our files and discs last hundreds of times longer than conventional high quality grinding files and discs.

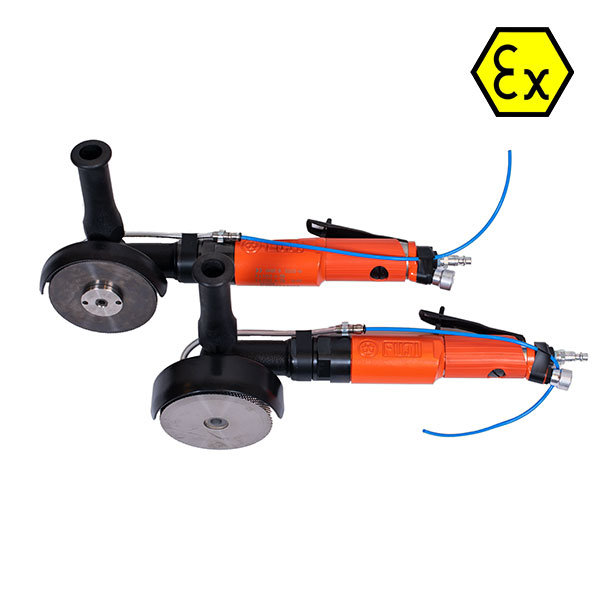

Custom made Ex certified air tool of Japanese quality

Cutting setup:

When the A-0105 machine is used with a water control box and cutting discs the temperature rating is T4. For information about our cutting solutions please visit cutting solutions.

Weld removal and cutting discs:

Accessories

A-0073 – Cutting guard
A-0074 – Weld removal guard
A-0068 Drop Safety
A-0077a – Inside adapter chuck
A-0077b – Outside adapter chuck

73

Grinding setup:

When the air tool is used with our grinding disc, the temperature rating sets to T3. Several of our grinding solutions has this machine included. Please visit our grinding solutions page for more information.

Grinding disc

Accessories

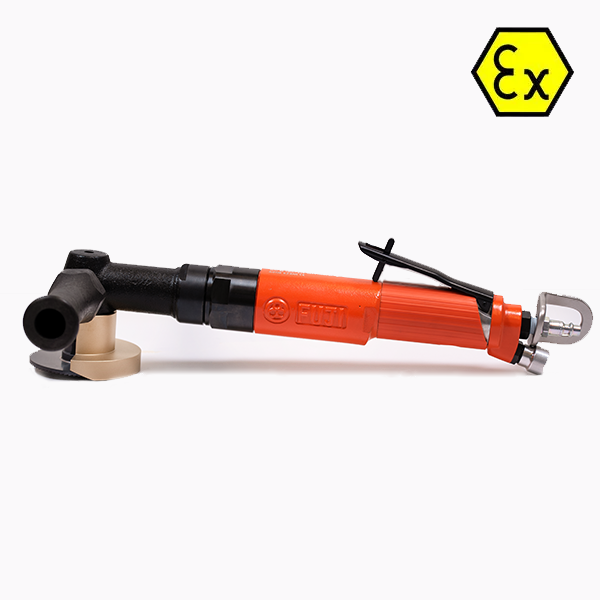

A-0105 Fuji Angle Grinder (FCD-10X-52) - 1
