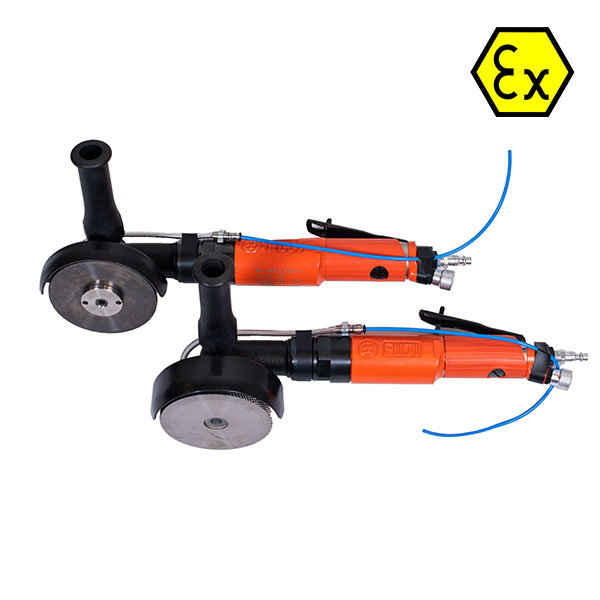

Custom made ATEX certified air tool of Japanese quality
Technical details
- Speed – 1000 rpm
- Weight – 2400g
- Length – 377mm
- Diameter – 50mm
- Max Air Cons – 0,50 m3/min
- Temperature Marking – T3/T4
- Air inlet – 1/4″ NPT
- Pneumatic tool drawing
- User manual
Cutting setup:
When the A-0105 machine is used with a water control box and cutting discs the temperature rating is T4. For information about our cutting solutions please visit cutting solutions.
Weld removal and cutting discs:
Accessories
Grinding setup:
When the air tool is used with our grinding disc, the temperature rating sets to T3. Several of our grinding solutions have this machine included. Please visit our grinding solutions page for more information.
Grinding disc
Accessories
Health, Safety and the Environment
Our products are designed to comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, low heat, and low noise levels. The fragments produced are large, blunt, and will stay within a few centimeters/inches of your work area. This makes cleaning up simple and safe.
Long lasting
Safety Tools Allmet files and discs should not be treated as normal consumer goods because they are very durable. We have rented our grinding solutions for over a decade in the North Sea. Our customers often state that our files and discs last hundreds of times longer than conventional high-quality grinding files and discs.
Recommended Usage Areas
Our cold technology is used in many sectors, including oil and gas, petrochemical, steel construction, and shipbuilding. In addition to maintenance work on bridges and offshore installations.
Below you can find our project pages.
Cold Solutions - ATEX Certified
Health, Safety & the Environment
Products comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, heat, and noise levels. The fragments are large and blunt and will stay within a few centimetres/inches of your work area, thus making cleaning up simple and safe.
Certified and classified by Gexcon Certification
All solutions from Safety Tools Allmet are ATEX Certified as safe to use in ATEX Gas zones 1 & 2. Our cutting tools are also certified for use in ATEX dust zones 21 & 22. No need for a hot work permit, habitats, fire guards, shutdowns and nitrogen flushing/flushing.
Tungsten Carbide
Our rotating files and discs consist of solid tungsten carbide. The hardness and design of the teeth significantly increase the lifetime of the grinding files and discs. You can expect a lifetime of 100 times more than conventional burrs.
Spot Repair
Ex-certified cold work tools from Safety Tools Allmet provide a good, clean surface with a profile that meets the requirements of the SSPC-SP11 Surface Preparation Standard.
Surface profile
The solid tungsten head for Safety Tools cold rotating grinding files has different designs on its teeth so that they can produce different surface profiles for every situation. Our burrs create a roughness profile of between 40 – 75 microns.
Adhesion and Cleanliness
The correct surface profile creates a suitable anchor for paint and coatings. ATEX grinding tools from Safety Tools Allmet create good adhesion and a clean surface. Extensively independently tested for surface adhesion by International Paint, Jotun, Chevron and Weatherford.
NO Isocyanates - LOW Sound levels - LOW Vibration
NO release of isocyanates when grinding or cutting through polyurethane.
Low sound level. (<85 dB)
Low vibration. (Average <2.5 m/s)
Safety Tools Allmet - Since 1998
We are experts in training, usage and maintenance of our cold solutions. We can document years worth of good feedback from customers worldwide.
