A-0047 – Coating Maintenance Solution

Our Coating Maintenance Solution was developed for an optimal system for paint removal and producing a surface profile ready to paint – with strong adhesion levels.

Technical data
  • Size: 54x21x44cm
  • Weight: 13,5kg

Categories ,
Share
Description

Coating Maintenance Solutions

Our Coating Maintenance Solution is designed to keep you ahead of the maintenance plan while saving time by eliminating demanding risk assessments and costs related to shutdowns, fireguards, hot work permits, habitats, and demanding cleanup work. We offer a more affordable version of this solution at A-0048 Coating Maintenance Solution Eco.

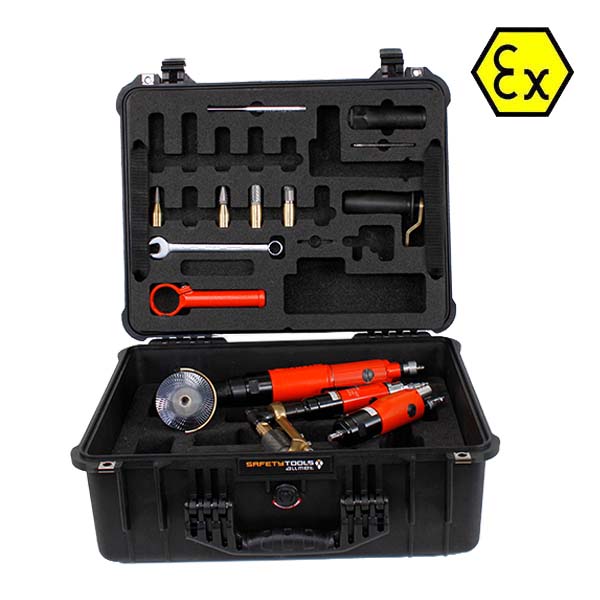

The solution contains one straight grinder, two angle grinders, and 5 of our grinding files.

Our tools are certified safe to use in ATEX gas zone 1 and 2 and in ATEX dust zone 21 & 22.

Health, Safety & the Environment

Our grinding products are designed to comply with the requirements for Health Safety & the Environment (HSE & OSHA) offering low vibration, low heat and low noise levels. The fragments produced are large, blunt and will stay all within a few centimetres/inches of your work area. This makes cleaning up simple and safe.

Long lasting

Safety Tools Allmet tools should not be treated as normal consumer goods because they are very durable. We have rented our grinding solutions for over a decade in the North Sea. Our customers often state that our files and discs last hundreds of times longer than conventional high quality grinding files and discs.

Based on a surface treatment test performed at Safety Tools Allmet, Rough Boy grinding file removed 490 μm of oil based paint from 1 m² in 49 minutes.

This product contains

Air tools
Rotating grinding files
Disc
Accessories
Proposed application areas:

Corrective maintenance on platforms

Corrosion maintenance on ships

Engine room surface maintenance

H-beam surface maintenance

Mechanical maintenance

Remove coatings from valves

Remove corrosion on stuck small bolts

Topside corrosion maintenance

Flange separation preparation

Grinding and surface preparation on live fixed pipelines

Inbetween narrow openings (Grating)

Pin hole corrosion

Remove coating in layers

Remove corossion from valves

Remove or smooth edges

And many more

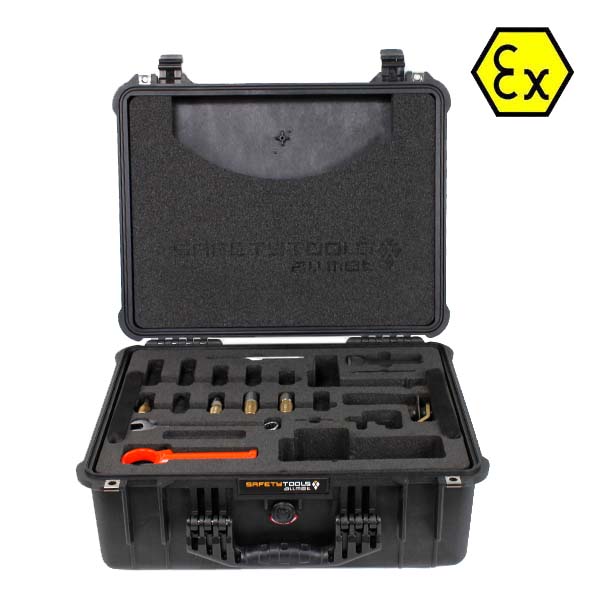

Our Grinding and Cutting Solutions come safely packed in a custom Pelicase lined with black foam and include:

DNV certification

EC Declaration

User manual

Quality control checklist

Pneumatic engine diagrams

Analysis for risk report

Ex tools and accessories

Testimonials

The Safety Tools Allmet grinding tools were tested under anticipated worst case conditions - operation within explosive mixtures of propane and acetylene. It was not found possible to provoke ignition of the explosive mixtures during any of the tests performed.
Geir H. Pedersen
Department manager Process and Safety, GexCon
I believe the introduction of EX-Certified tools that are classified as Cold Work by DNV is a major step forward - for safety, the environment, and the health of all personnel using this class of tools
Arvid Skines
Main Safety Delegate, for the StatFjord Field
By using ATR Group's Safety Tools Allmet's grinding tools, being Cold Work and ATEX compliant, enabled us to successfully remove all defects while maintaning normal production saving at least a week's worth of production.
Boris Thomas
CNNS Corrosion Engineer Shell
In my 20 years' experience, I have never before seen a new tool that has shown such promise, radically improving the HSE situation at offshore facilities. Personally I think it should be mandatory.
Halvor Erikstein
Norwegian Union of Energy Workers (SAFE)
