Some key advantages of Steel Grinding Solution
Steel grinding solution is designed to keep you ahead of the maintenance plan by reducing time spent on demanding risk assessments and cutting all costs related to shutdowns, fireguards, hot work permits, habitats, and demanding cleanup work. Steel Grinding Solution specializes in corrosion and paint removal from stainless steel, titanium, and aluminium. This solution contains ten grinding files, one straight grinder, and one angle grinder.
The air tools, grinding files are Ex-certified as safe to use in ATEX gas zone 1 and 2↵.

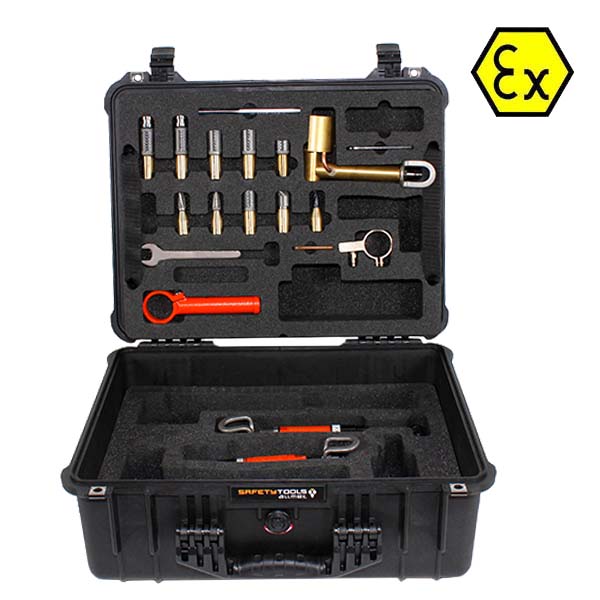

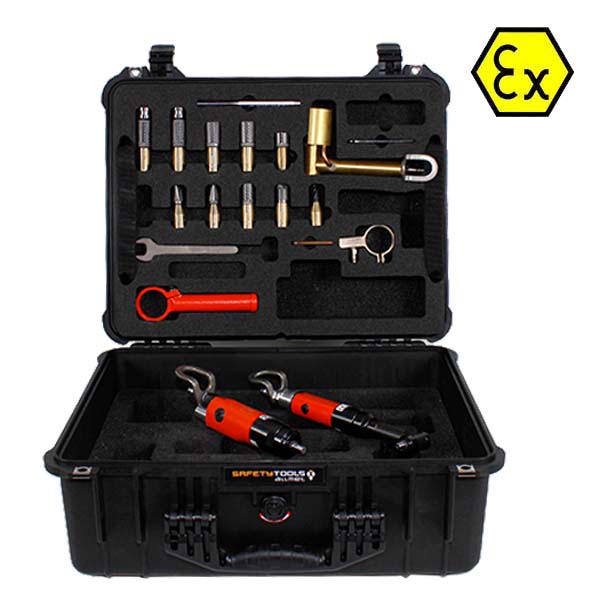

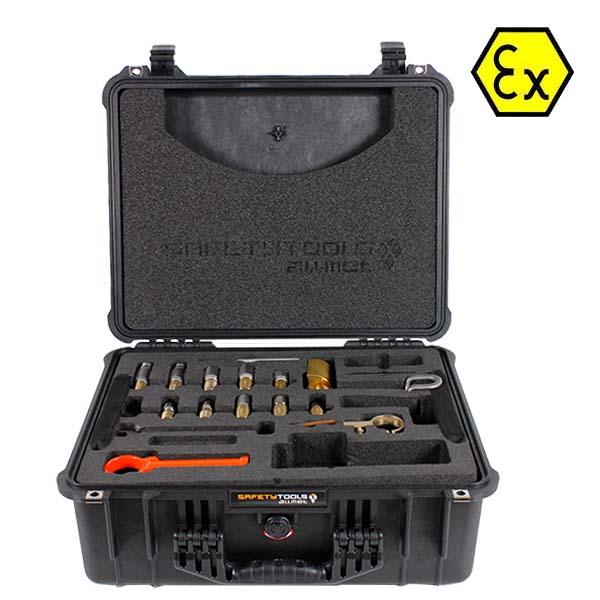

A-0058 – Steel Grinding Solution contains:
| Weight | 14 kg |
|---|---|
| Dimensions | 54 × 44 × 21 cm |
A-0002 Bow Cone – Life expectancy of 9600 Spot (5x5cm)
Creates an average surface roughness of 43μm (Micrometer)
A-0004 – Little Papa – Life expectancy of 12,000 Spot (5x5cm)
Creates an average surface roughness of 83μm (Micrometers)
A-0006 – Al-Ti-Char – Life expectancy of 6000 Spot (5x5cm)
Creates an average surface roughness of 44μm (Micrometer)
A-0008 – Big papa 2 pcs
– Life expectancy of 16,000 Spot (5x5cm)
Creates an average surface roughness of 72μm (Micrometers)
32 000 Spots total for both grinding burrs.
A-0003 – Straight Cone – Life expectancy of 9600 Spot (5x5cm)
Creates an average surface roughness of 44μm (Micrometer)
A-0005 – Round Boy – Life expectancy of 9600 Spot (5x5cm)
Creates an average surface roughness of 53μm (Micrometer)
A-0007 – Shorty – Life expectancy of 16,000 Spot (5x5cm)
Creates an average surface roughness of 56μm (Micrometers)
A-0009C – Big Boy C 2 pcs
– Life expectancy of 24 000 Spot (5x5cm)
Creates an average surface roughness of 63μm (Micrometers)
48 000 Spots total for both grinding burrs.
ATEX certificate
EC Declaration
User manual
Quality control checklist
Parts lists for air tools
Risk analysis for air tools
Ex-tools and accessories
The total lifetime of this solution’s grinding files and disks is 142 800 spots. (5×5 cm)*
You find the individual lifetime of grinding files and disks in the listing above and the surface roughness µm. (Micrometer)
Calculate your costs with our spot calculator.
*Lifetime depends on material type and coating/paint.
Health, Safety & the Environment
Our grinding products are designed to comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, low heat, and low noise levels. The fragments produced are large, blunt, and will stay within a few centimeters/inches of your work area. This makes cleaning up simple and safe.
Long-lasting
Safety Tools Allmet rotating grinding burrs and discs have a long lifespan and consist of solid tungsten carbide, which gives our burrs and discs a material property harder than an industrial diamond. The lifespan of the rotating grinding burrs and discs depends on the application, but generally, they last hundreds of times longer than conventional alternatives.
Recommended Usage Areas
Our cold technology is used in many sectors, including oil and gas, petrochemical, steel construction, and shipbuilding. In addition to maintenance work on bridges and offshore installations.
Below you can find our project pages.
Cold Solutions - ATEX Certified
Health, Safety & the Environment
Products comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, heat, and noise levels. The fragments are large and blunt and will stay within a few centimetres/inches of your work area, thus making cleaning up simple and safe.
Certified and classified by Gexcon Certification
All solutions from Safety Tools Allmet are ATEX Certified as safe to use in ATEX Gas zones 1 & 2. Our cutting tools are also certified for use in ATEX dust zones 21 & 22. No need for a hot work permit, habitats, fire guards, shutdowns and nitrogen flushing/flushing.
Tungsten Carbide
Our rotating files and discs consist of solid tungsten carbide. The hardness and design of the teeth significantly increase the lifetime of the grinding files and discs. You can expect a lifetime of 100 times more than conventional burrs.
Spot Repair
Ex-certified cold work tools from Safety Tools Allmet provide a good, clean surface with a profile that meets the requirements of the SSPC-SP11 Surface Preparation Standard.
Surface profile
The solid tungsten head for Safety Tools cold rotating grinding files has different designs on its teeth so that they can produce different surface profiles for every situation. Our burrs create a roughness profile of between 40 – 75 microns.
Adhesion and Cleanliness
The correct surface profile creates a suitable anchor for paint and coatings. ATEX grinding tools from Safety Tools Allmet create good adhesion and a clean surface. Extensively independently tested for surface adhesion by International Paint, Jotun, Chevron and Weatherford.
NO Isocyanates - LOW Sound levels - LOW Vibration
NO release of isocyanates when grinding or cutting through polyurethane.
Low sound level. (<85 dB)
Low vibration. (Average <2.5 m/s)
Safety Tools Allmet - Since 1998
We are experts in training, usage and maintenance of our cold solutions. We can document years worth of good feedback from customers worldwide.
