2024 campaign solution with two free special tools included

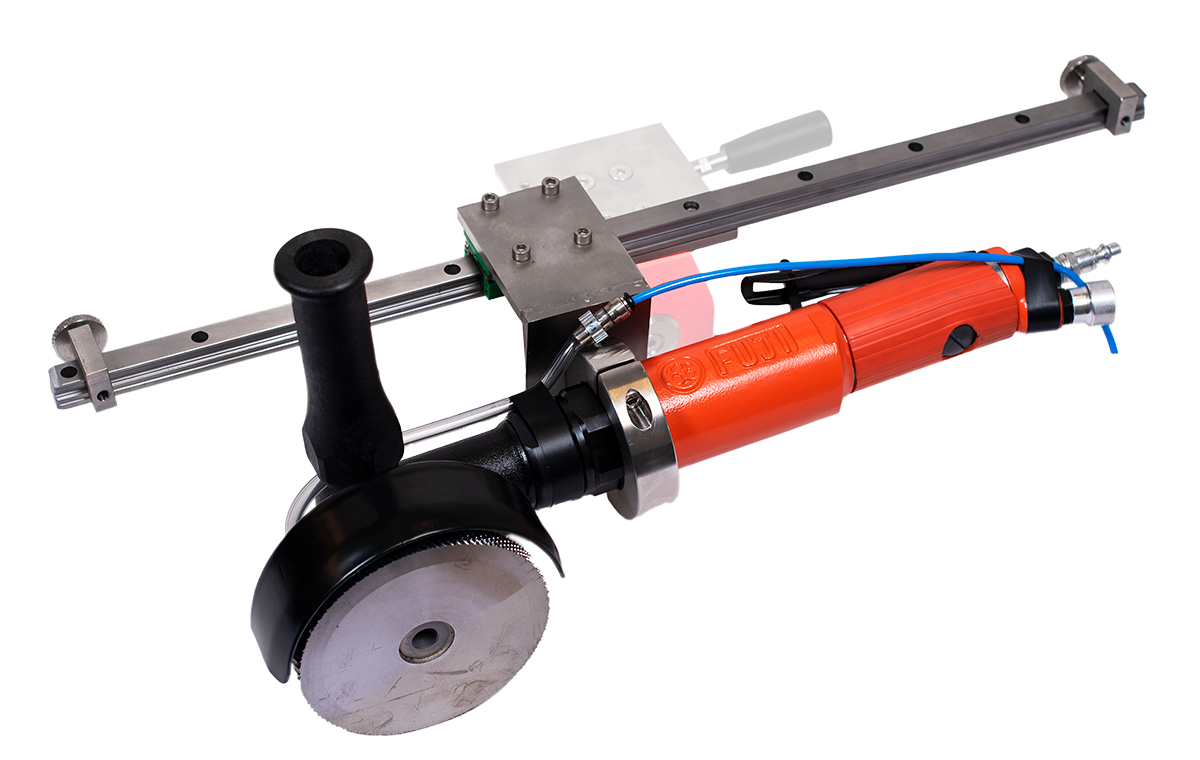

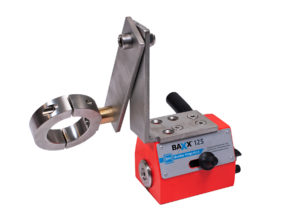

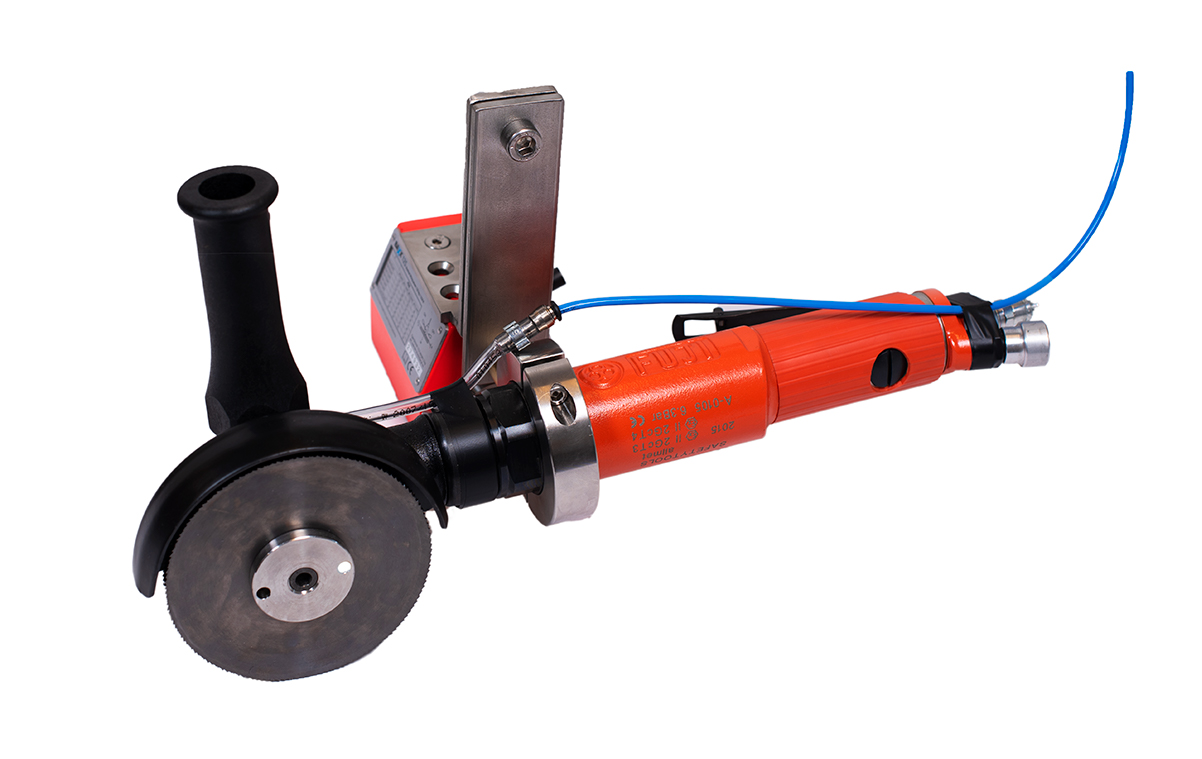

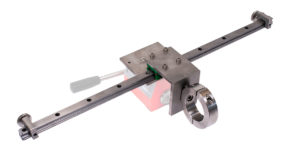

This year’s campaign solution includes two of our Ex-certified air tools, a cutting disc and a welding removal disc, and special helping tools Pendulum Arm and Cutting Guide Compact. The solution includes one mounting magnet that can be moved between both special solutions, and it is very easy to move the position of the magnet for each special helping tool.
Save time on reduced risk evaluations and save costs related to shutdowns, fire watches, hot work permits, habitats, and demanding cleanup work.
The tool is Ex-certified as safe to use in ATEX gas zones 1 and 2, as well as in ATEX dust zones 21 and 22.

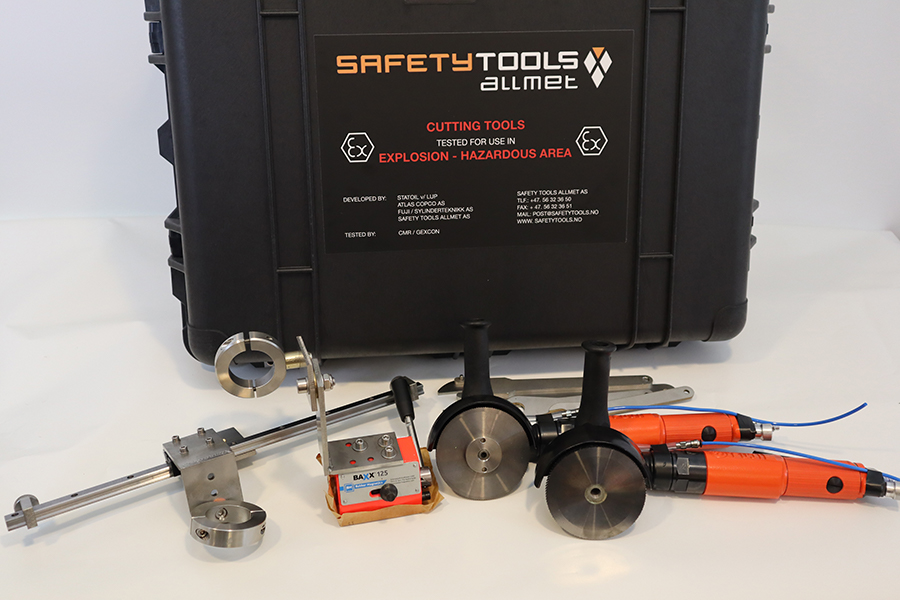

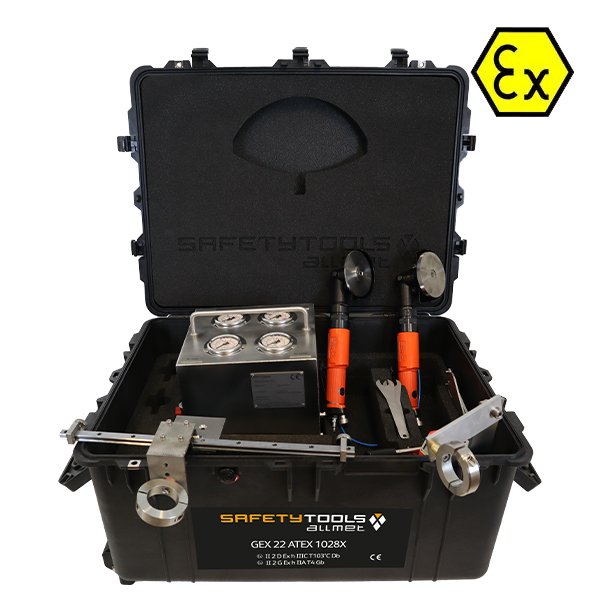

A-0300 C – 2024 Cut & Weld Removal Campaign contains:
A-0070 Antistatic air hose with water cooling
A-0073 – Cutting Guard
A-0074 Covering Weldseam Fuji
A-0077A – Chuck plate front – Fuji
A-0077C – Chuck plate back – Fuji
A-0079 Nozzle with connector (2 pcs)
A-0086 STA Cutting and Weldseam Pelicase
A-0204 – Thin Spanner 19mm
A-0206 – Chuck key
A-0208 – Spanner 22mm
A-0209 Spanner 36mm Thin
ATEX certificate
EC-Declaration
User manual
Quality Control Checklist
Parts Lists for Air Tools
Risk Analysis for Air Tools
Ex-Tools and fastening tools
Health, Safety & the Environment
Our products are designed to comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, low heat, and low noise levels. The fragments produced are large, and blunt, and will stay within a few centimetres/inches of your work area. This makes cleaning up simple and safe.
Long Lifespan
Our cutting and welding removal discs are extremely durable. With an experienced user, our discs will cut and grind approximately 12 meters in length and 8 to 12 mm deep. With the 2024 campaign’s included solutions Pendulum Arm and Cutting Guide Compact, the lifespan of the disc increases by more than 20%!

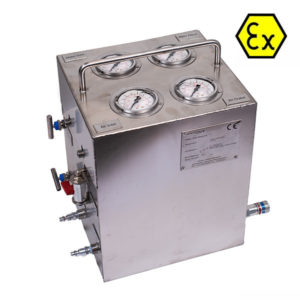

The water from the water control box acts as a lubricant and increases the lifespan of our cutting discs.
Recommended Usage Areas
Our cold technology is used in many sectors, including oil and gas, petrochemical, steel construction, and shipbuilding. In addition to maintenance work on bridges and offshore installations.
Below you can find our project pages.
Cold Solutions - ATEX Certified
Health, Safety & the Environment
Products comply with Health Safety & the Environment (HSE & OSHA) requirements, offering low vibration, heat, and noise levels. The fragments are large and blunt and will stay within a few centimetres/inches of your work area, thus making cleaning up simple and safe.
Certified and classified by Gexcon Certification
All solutions from Safety Tools Allmet are ATEX Certified as safe to use in ATEX Gas zones 1 & 2. Our cutting tools are also certified for use in ATEX dust zones 21 & 22. No need for a hot work permit, habitats, fire guards, shutdowns and nitrogen flushing/flushing.
Tungsten Carbide
Our rotating files and discs consist of solid tungsten carbide. The hardness and design of the teeth significantly increase the lifetime of the grinding files and discs. You can expect a lifetime of 100 times more than conventional burrs.
Spot Repair
Ex-certified cold work tools from Safety Tools Allmet provide a good, clean surface with a profile that meets the requirements of the SSPC-SP11 Surface Preparation Standard.
Surface profile
The solid tungsten head for Safety Tools cold rotating grinding files has different designs on its teeth so that they can produce different surface profiles for every situation. Our burrs create a roughness profile of between 40 – 75 microns.
Adhesion and Cleanliness
The correct surface profile creates a suitable anchor for paint and coatings. ATEX grinding tools from Safety Tools Allmet create good adhesion and a clean surface. Extensively independently tested for surface adhesion by International Paint, Jotun, Chevron and Weatherford.
NO Isocyanates - LOW Sound levels - LOW Vibration
NO release of isocyanates when grinding or cutting through polyurethane.
Low sound level. (<85 dB)
Low vibration. (Average <2.5 m/s)
Safety Tools Allmet - Since 1998
We are experts in training, usage and maintenance of our cold solutions. We can document years worth of good feedback from customers worldwide.
